Oxyfuel Cutting Services
CMDI offers oxyfuel cutting services for thick carbon steel plates using a thermal flame cutting process that is ideal for heavy-duty applications. This method is well-suited for cutting steel between 1/4" and 12" thick, particularly in structural fabrication, equipment manufacturing, and other industries requiring durable, cost-effective results.
Based in Ivanhoe, Virginia, we work with manufacturers, fabricators, and machine shops across the Appalachian region, delivering quick turnarounds and consistent results across industrial applications.

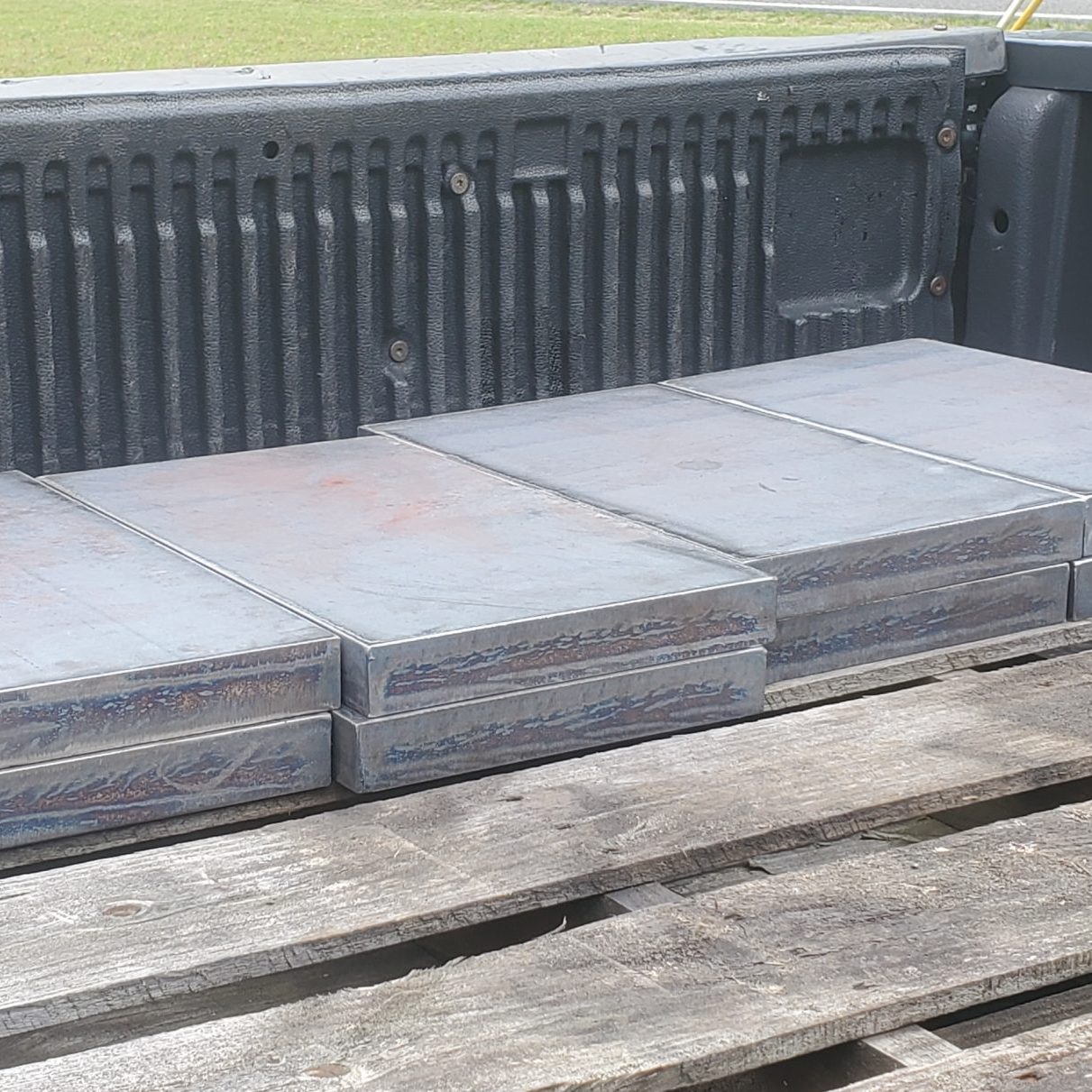

Custom Oxyfuel Cuts from CMDI

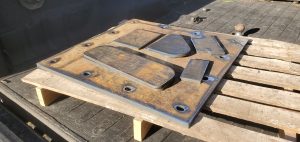

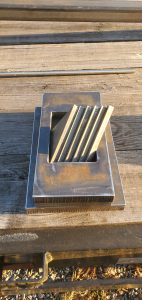

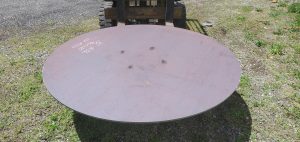

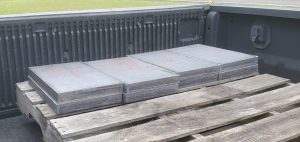

See what we’ve built. Visit our Metal Cutting Project Gallery for more custom-cut parts and precision work. View Full Gallery →
What Is Oxyfuel Cutting?

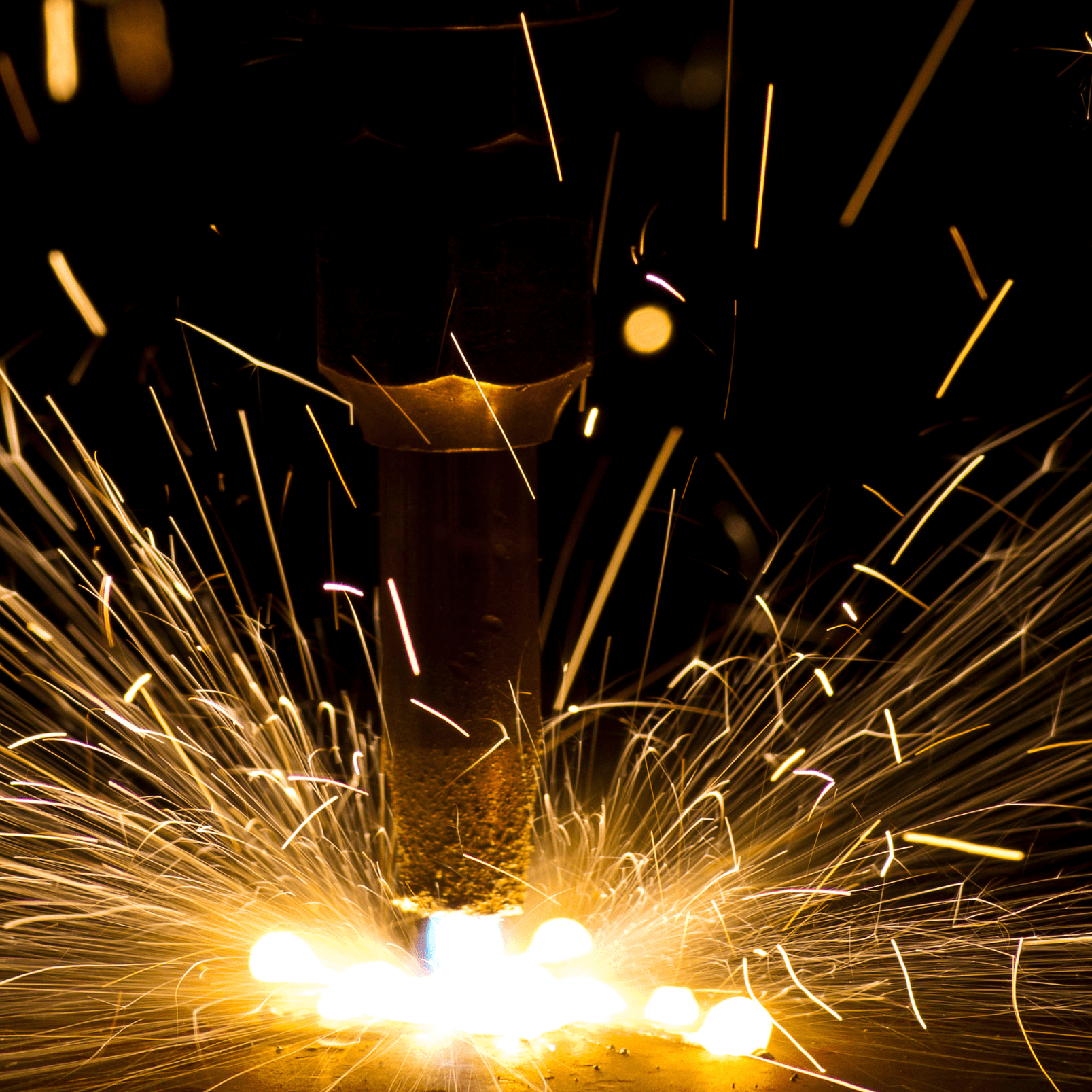

Oxyfuel cutting (also called oxyacetylene cutting or flame cutting) is a thermal metal cutting process that uses pure oxygen combined with a fuel gas (typically acetylene) to preheat and chemically oxidize steel. The process allows material to be cut away cleanly and efficiently, particularly in thicker plate applications.
Oxyfuel is known for its ability to:
-
Handle thicker materials than plasma cutting
-
Operate with a lower equipment investment
-
Create clean straight cuts or bevels in carbon steel
When to Use Oxyfuel for Metal Cutting
CMDI recommends oxyfuel cutting when your project involves:
- Steel plates between 1/4" and 12" thick
- Carbon steel materials only
- Straight-line or bevel cuts
- Budget-conscious or high-volume production needs
- Jobs where speed matter
From equipment bases to structural weldments, this cutting process is built for performance and precsion in tough industrial settings.
Explore our full plasma cutting capabilities for more precision metal cutting services.

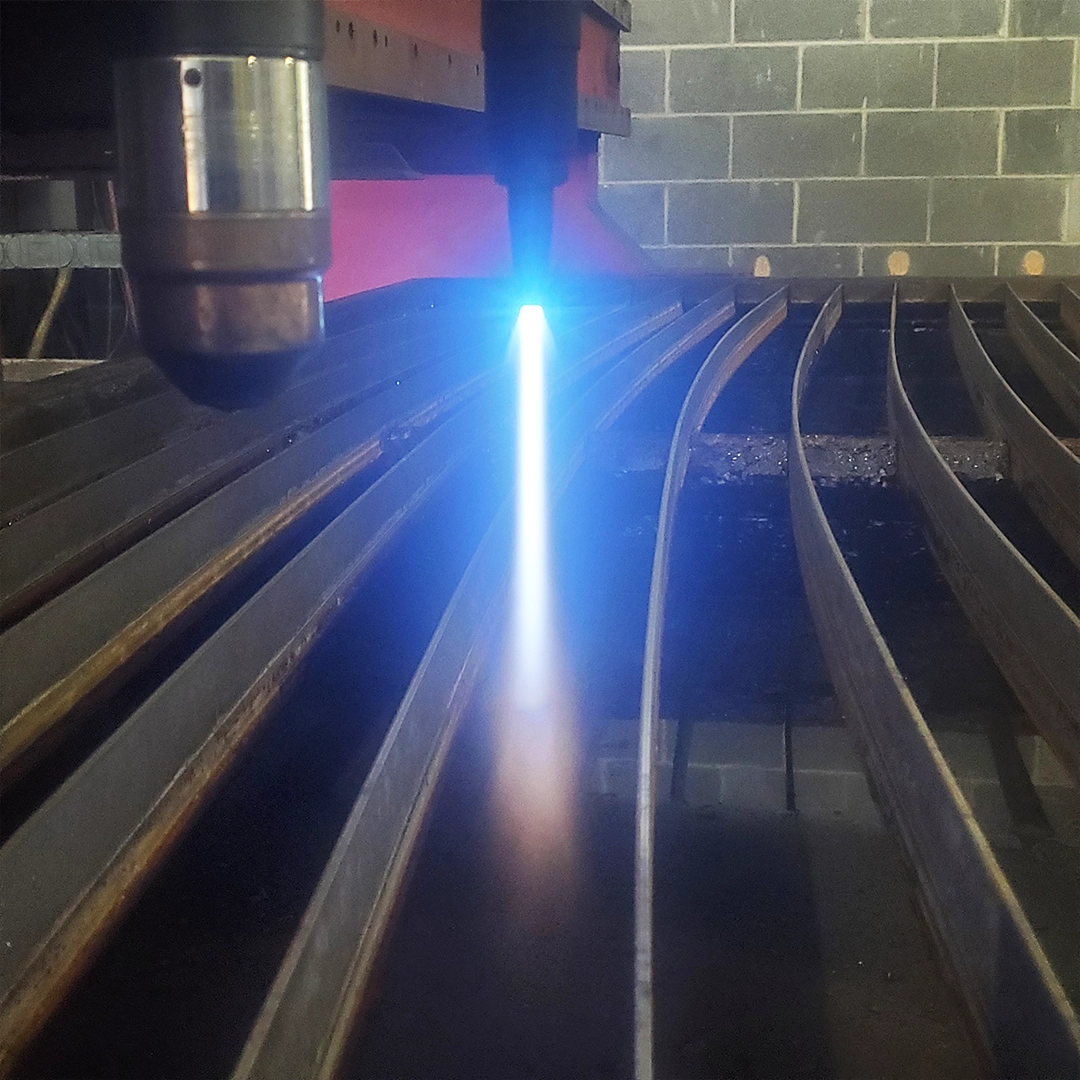

CMDI's Flame Cutting Capabilities
Our in-house oxyfuel flame cutting services are designed for industrial durability, high throughput, and dimensional control. CMDI's equipment and processes will deliver:
- Flame cutting for carbon steel only
- Plate thickness range: 1/4" up to 12"
- Table cutting capacity: 11 feet x 22 feet
- Tolerance control by thickness:
- Less than 2" = 1/8"
- 2"–<4" = 3/16"
- 4"–<8" = 1/4"
- 8"–<10" = 5/16"
- 10"–12" = 1/2"
- Minimum hole size equal to plate thickness

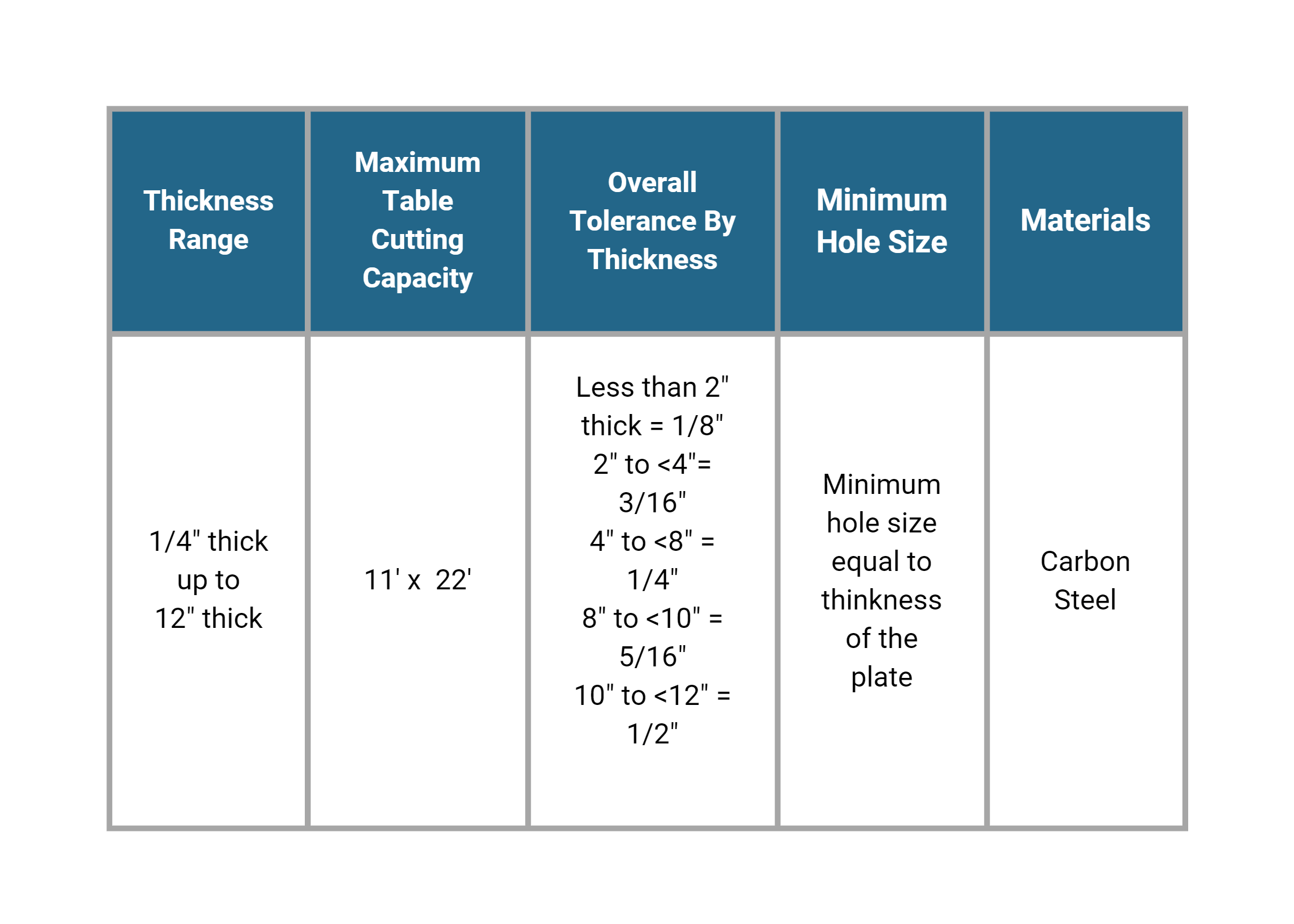

| Thickness Range | Maximum Table Cutting Capacity | Overall Tolerace By Thickness | Minimum Hole Size | Materials |
|---|---|---|---|---|
| 1/4" thick up to 12" thick | 11' x 22' |
Less than 2" thick = 1/8" 2" to <4" = 3/16" 4" to <8" = 1/4" 8" to <10" = 5/16" 10" to <12" = 1/2" |
Minimum hole size equal to thickness of the plate | Carbon Steel |
Looking for precision plasma or oxyfuel cutting in Virginia or neighboring states? CMDI is equipped to serve businesses across the region with fast turnaround and high-quality results.
| Thickness Range |
|---|
| 1/4" thick up to 12" thick |
| Maximum Table Cutting Capacity |
| 11' x 22' |
| Overall Tolerace By Thickness |
|
Less than 2" thick = 1/8" 2" to <4" = 3/16" 4" to <8" = 1/4" 8" to <10" = 5/16" 10" to <12" = 1/2" |
| Minimum Hole Size |
| Minimum hole size equal to thickness of the plate |
| Materials | Carbon Steel |
Looking for precision plasma or oxyfuel cutting in Virginia or neighboring states? CMDI is equipped to serve businesses across the region with fast turnaround and high-quality results.
Oxyfuel vs. Plasma Cutting: Which is right for your project
CMDI offers both oxyfuel and plasma cutting services to meet a variety of industrial needs. Here's a quick comparison based on our in-house capabilities:
| Factor | Oxyfuel Cutting | Plasma Cutting |
|---|---|---|
| Best for | Thick carbon steel (1/4" to 12") | Thin to medium gauge metal (.018" to 2.5") |
| Material types | Carbon steel only | Carbon steel, aluminum, stainless steel |
| Max thickness | Up to 12" | Carbon: 2.5″ • Aluminum: 2″ • Stainless: 2″ |
| Cutting table size | 11′ x 22′ | 11′ x 22′ |
| Cut quality | Rugged, heat-affected edge | Cleaner edges, minimal waste |
Not sure which method is right for your job? Contact CMDI to discuss your material, tolerance, and volume requirements. Our team will recommend the best-fit cutting method.
Start Your Metal Cutting Project with CMDI
CMDI’s experienced team and precision equipment ensure your metal parts are cut to spec, delivered on time, and ready for the next stage of fabrication.
View our capability statement →
